Application Areas： Metal shredder will be all kinds of waste metal cans, lulu, beverage cans, beer cans, red Bull cans, eight treasure porridge cans, and its cans, metal bottles, cans, cola cans, paint buckets, thin tin, scrap iron slag, mooncake boxes, cans and other cans broken into pellets, thereby reducing transportation costs and improving the speed of scrap iron smelting furnace.

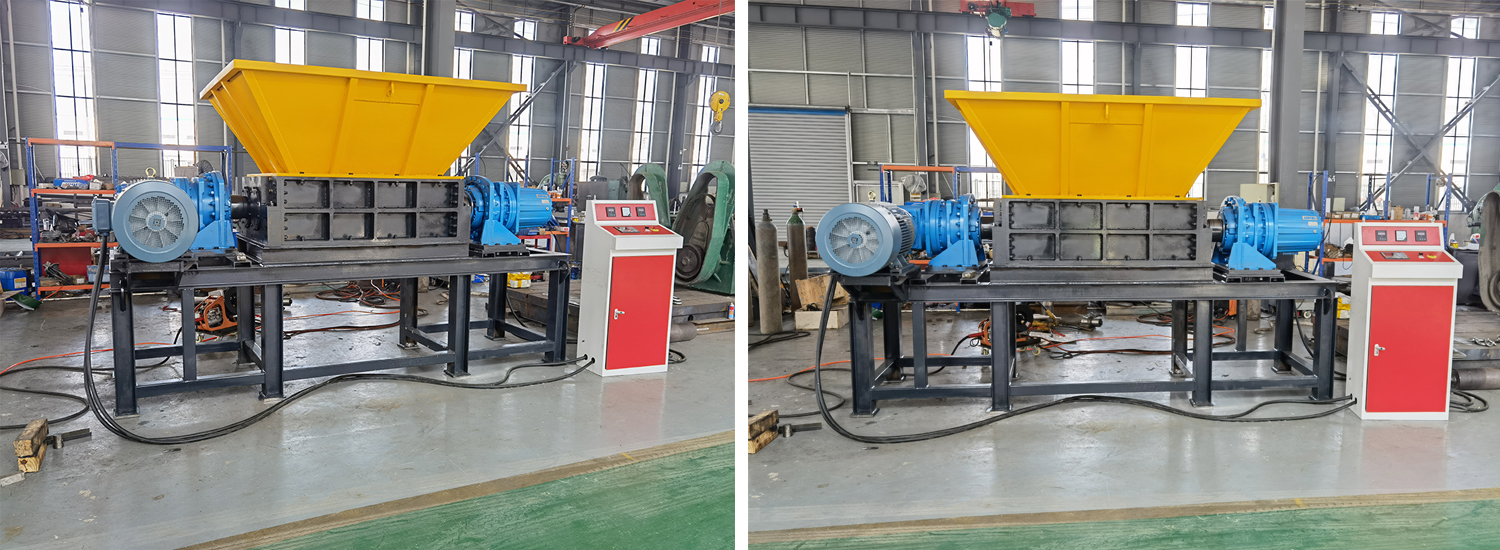

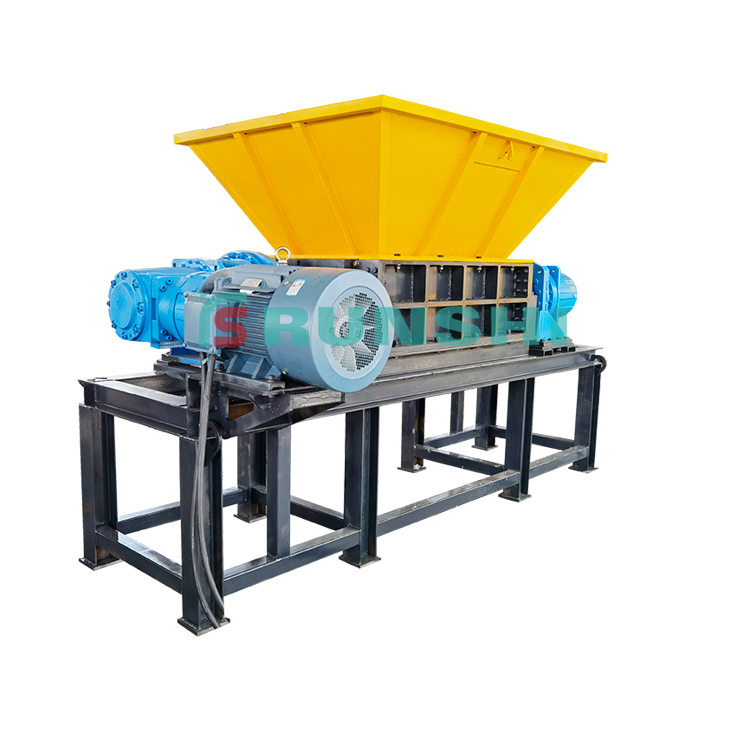

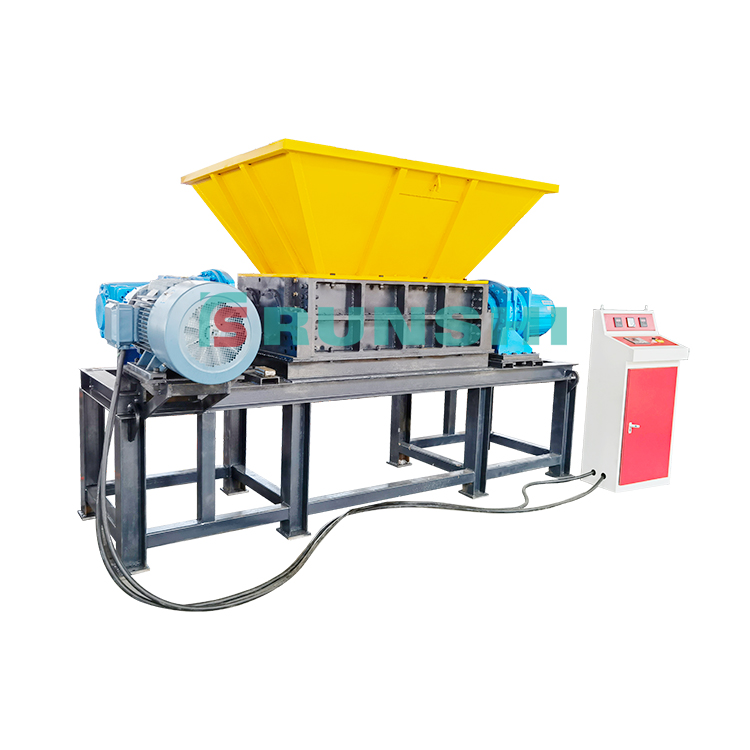

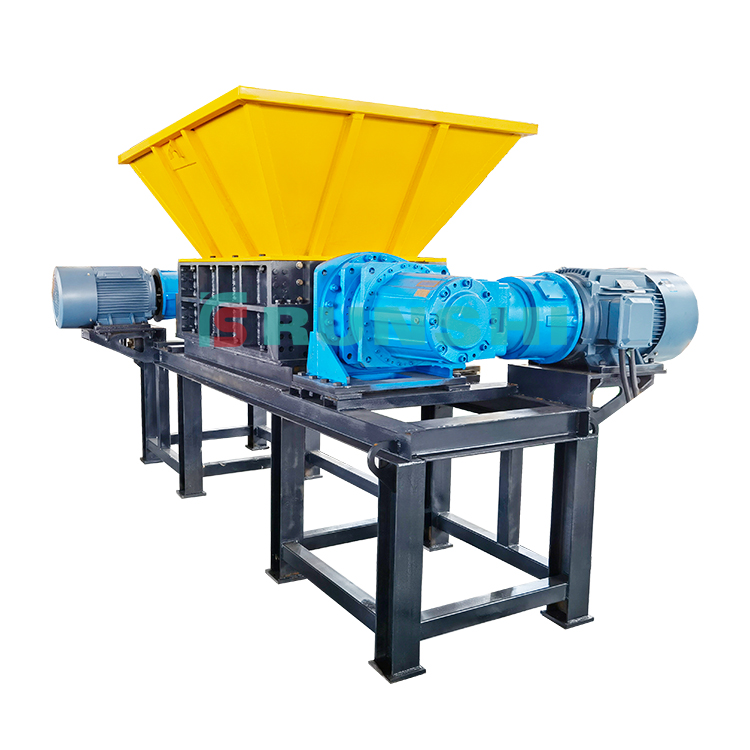

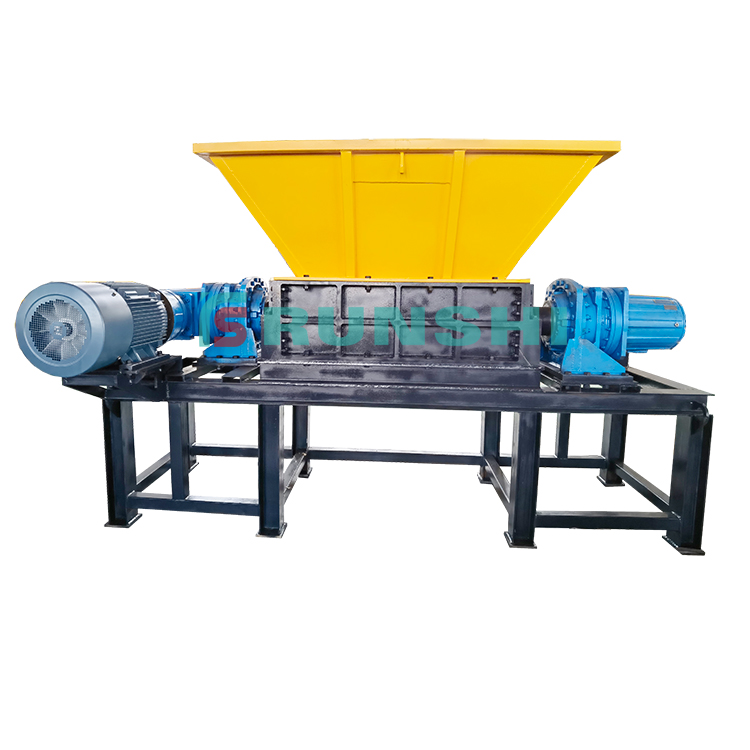

RSS series double shaft shredder adopt double shaft roller symmetrical design structure,by two knife roller blades rotate to shear, tear and squeeze material to small particles.

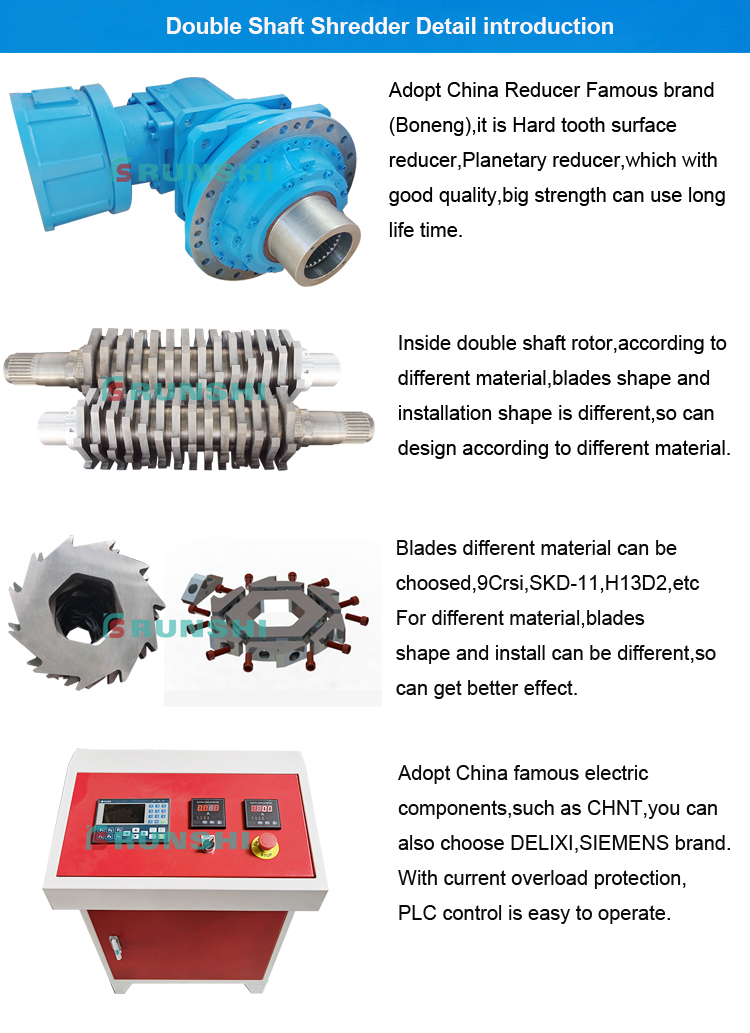

1.Without screen design,with big shredding efficiency.
2.Adopt Hardened gear reducer,which can make sure machine work stable.
3.Adopt PLC control,with start,stop,automatic reverse,overload protect
function,can protect machine during working.
Domestic garbage,Vegetable market garbage, restaurant kitchen garbage, used
household appliances, used tires, large pipes, pipe fittings, pallets, various
packaging barrels, car shells, various metal wastes,RDF waste,etc.
Model | Power | Blades thickness | Blades dia.(mm) | Shredder chamber | Weight(kg) |
RSS-600 | 22kw*2 | 6-15mm | Φ250 | 600mm | 1500 |
RSS-800 | 30kw*2 | 20-50mm | Φ300 | 800mm | 3000 |
RSS-1000 | 55kw*2 | 20-50mm | Φ400-440 | 1000mm | 5000 |
RSS-1200 | 75kw*2 | 20-50mm | Φ400-440 | 1200mm | 12000 |
RSS-1400 | 132kw*2 | 40-60mm | Φ400-550 | 1400mm | 20000 |
RSS-1600 | 160kw*2 | 40-80mm | Φ400-660 | 1600mm | 24000 |
RSS-2000 | 280kw*2 | 50-80mm | Φ540-850 | 2000mm | 30000 |
